Spelunx.Orbbec.FrameDataProvider Class Reference

Processes data from the ORBBEC sensor in a background thread to produce FrameData. More...

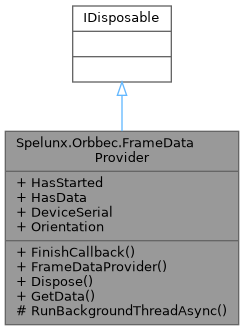

Inheritance diagram for Spelunx.Orbbec.FrameDataProvider:

Collaboration diagram for Spelunx.Orbbec.FrameDataProvider:

Public Member Functions
delegate void	FinishCallback ()
	FrameDataProvider (int deviceId, SensorOrientation orientation, FinishCallback onFinish)
void	Dispose ()
bool	GetData (ref FrameData output)

Protected Member Functions
void	RunBackgroundThreadAsync (int deviceId, CancellationToken token, FinishCallback onFinish)

Properties
bool	HasStarted = false [get, protected set]
	Flag to determine of the background thread has started.
bool	HasData = false [get]
string	DeviceSerial [get]
SensorOrientation	Orientation [get]

Detailed Description

Processes data from the ORBBEC sensor in a background thread to produce FrameData.

Definition at line 10 of file FrameDataProvider.cs.

Constructor & Destructor Documentation

FrameDataProvider()

Spelunx.Orbbec.FrameDataProvider.FrameDataProvider ( int  deviceId, SensorOrientation  orientation, FinishCallback  onFinish  )

inline

Definition at line 26 of file FrameDataProvider.cs.

Member Function Documentation

Dispose()

void Spelunx.Orbbec.FrameDataProvider.Dispose ( )

inline

Definition at line 36 of file FrameDataProvider.cs.

FinishCallback()

delegate void Spelunx.Orbbec.FrameDataProvider.FinishCallback

(

)

GetData()

bool Spelunx.Orbbec.FrameDataProvider.GetData ( ref FrameData  output )

inline

Definition at line 48 of file FrameDataProvider.cs.

RunBackgroundThreadAsync()

void Spelunx.Orbbec.FrameDataProvider.RunBackgroundThreadAsync ( int  deviceId, CancellationToken  token, FinishCallback  onFinish  )

inlineprotected

Definition at line 61 of file FrameDataProvider.cs.

Property Documentation

DeviceSerial

string Spelunx.Orbbec.FrameDataProvider.DeviceSerial

get

Definition at line 16 of file FrameDataProvider.cs.

HasData

bool Spelunx.Orbbec.FrameDataProvider.HasData = false

get

Definition at line 15 of file FrameDataProvider.cs.

HasStarted

bool Spelunx.Orbbec.FrameDataProvider.HasStarted = false

getprotected set

Flag to determine of the background thread has started.

Definition at line 14 of file FrameDataProvider.cs.

Orientation

SensorOrientation Spelunx.Orbbec.FrameDataProvider.Orientation

get

Definition at line 17 of file FrameDataProvider.cs.

---

The documentation for this class was generated from the following file:

• CavernSDK/Packages/com.spelunx.cavern.orbbec.sdk/Runtime/Scripts/FrameDataProvider.cs
